Product Overview & Applications：
LiYY is a data transmission cable developed based on proven VDE 0812 specifications. It is suitable for flexible or stationary installations under low mechanical stress conditions, allowing free movement without tensile load or forced displacement in dry, damp and wet environments.
It is widely deployed as control and signal wiring for computer system electronics, electronic control assemblies, office equipment and measuring instruments within tool making and machinery industries. LiYY is the preferred option where compact outer diameter is required. Outdoor installation is not permitted.
Standards & Compliance：
- VDE 0245, VDE 0812
- CE Low Voltage Directives: 73/23/EEC & 93/68/EEC
- RoHS compliant

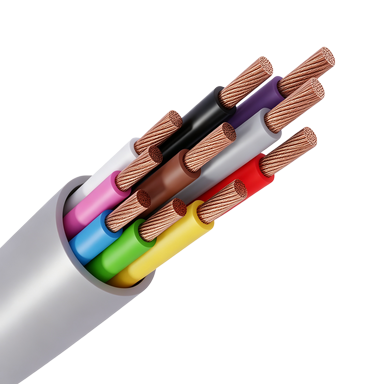

Cable Construction：
- Conductor: Plain copper strands, complying with DIN VDE 0295 Class 5, BS 6360 Class 5, IEC 60228 Class 5
- Core insulation: Type T12 PVC insulation to DIN VDE 0281 Part 1
- Core colour coding: DIN 47100 standard with non repeating colour sequence
- Outer sheath: Type TM2 PVC outer jacket conforming to DIN VDE 0281 Part 1
Technical Characteristics：
| Item | Parameter |
| Rated working voltage | 300/500 V |
| Test voltage | 1200/2000 V |
| Minimum bending radius | 4 × cable outer diameter (Ø) |
| Operating temperature (flexing service) | -5 ℃ ~ +70 ℃ |
| Operating temperature (static / fixed installation) | -30 ℃ ~ +80 ℃ |
| Short circuit withstand temperature | +160 ℃ |
| Flame retardant class | IEC 60332 1 |
| Insulation resistance | 20 MΩ·km |
| AWG | Cores × Nominal Cross section (No. × mm²) | Nominal Overall Diameter (mm) | Nominal Copper Weight (kg/km) | Nominal Cable Weight (kg/km) |
| 26(18/38) | 2 × 0.14 | 3.2 | 2.7 | 13.0 |
| 26(18/38) | 3 × 0.14 | 3.2 | 4.0 | 16.0 |
| 26(18/38) | 4 × 0.14 | 3.5 | 5.4 | 19.0 |
| 26(18/38) | 5 × 0.14 | 4.0 | 6.7 | 22.0 |
| 26(18/38) | 6 × 0.14 | 4.3 | 8.1 | 25.0 |
| 26(18/38) | 7 × 0.14 | 4.3 | 9.4 | 28.0 |
| 26(18/38) | 8 × 0.14 | 4.6 | 10.7 | 35.0 |
| 26(18/38) | 10 × 0.14 | 5.3 | 13.4 | 41.0 |
| 26(18/38) | 12 × 0.14 | 5.6 | 16.1 | 48.0 |
| 26(18/38) | 14 × 0.14 | 5.9 | 18.8 | 53.0 |
| 26(18/38) | 16 × 0.14 | 6.2 | 21.5 | 59.0 |
| 26(18/38) | 18 × 0.14 | 6.5 | 24.2 | 65.0 |
| 26(18/38) | 20 × 0.14 | 6.5 | 26.9 | 70.0 |
| 26(18/38) | 21 × 0.14 | 6.8 | 28.2 | 77.0 |
| 26(18/38) | 24 × 0.14 | 7.6 | 32.3 | 87.0 |
| 26(18/38) | 25 × 0.14 | 7.6 | 33.6 | 91.0 |
| 26(18/38) | 27 × 0.14 | 7.7 | 36.3 | 97.0 |
| 26(18/38) | 30 × 0.14 | 8.0 | 40.3 | 108.0 |
| 26(18/38) | 32 × 0.14 | 8.2 | 43.0 | 114.0 |
| 26(18/38) | 36 × 0.14 | 8.7 | 48.4 | 126.0 |
| 26(18/38) | 40 × 0.14 | 9.5 | 54.0 | 139.0 |
| 26(18/38) | 42 × 0.14 | 9.8 | 56.0 | 146.0 |
| 26(18/38) | 44 × 0.14 | 10.3 | 59.0 | 153.0 |
| 26(18/38) | 48 × 0.14 | 10.4 | 65.0 | 164.0 |
| 26(18/38) | 52 × 0.14 | 10.7 | 70.0 | 173.0 |
| 26(18/38) | 56 × 0.14 | 11.0 | 75.0 | 187.0 |
| 26(18/38) | 61 × 0.14 | 11.3 | 82.0 | 204.0 |
| 26(18/38) | 80 × 0.14 | 15.5 | 108.0 | 280.0 |
| 26(18/38) | 100 × 0.14 | 18.1 | 135.0 | 370.0 |
| 24(14/34) | 2 × 0.25 | 3.8 | 4.8 | 18.0 |
| 24(14/34) | 3 × 0.25 | 3.9 | 7.2 | 22.0 |
| 24(14/34) | 4 × 0.25 | 4.3 | 9.6 | 26.0 |
| 24(14/34) | 5 × 0.25 | 4.8 | 12.0 | 30.0 |
| 24(14/34) | 6 × 0.25 | 5.2 | 14.4 | 36.0 |
| 24(14/34) | 7 × 0.25 | 5.2 | 16.8 | 42.0 |
| 24(14/34) | 8 × 0.25 | 5.7 | 19.2 | 49.0 |
| 24(14/34) | 10 × 0.25 | 6.4 | 24.0 | 57.0 |
| 24(14/34) | 12 × 0.25 | 6.7 | 28.8 | 66.0 |
| 24(14/34) | 14 × 0.25 | 7.1 | 33.6 | 75.0 |
| 24(14/34) | 16 × 0.25 | 7.5 | 38.4 | 84.0 |
| 24(14/34) | 18 × 0.25 | 7.9 | 43.2 | 72.0 |
| 24(14/34) | 19 × 0.25 | 8.4 | 46.0 | 84.0 |
| 24(14/34) | 20 × 0.25 | 9.1 | 48.0 | 101.0 |
| 24(14/34) | 21 × 0.25 | 9.3 | 50.0 | 107.0 |
| 24(14/34) | 24 × 0.25 | 9.8 | 60.0 | 120.0 |
| 24(14/34) | 25 × 0.25 | 9.9 | 61.0 | 132.0 |
| 24(14/34) | 27 × 0.25 | 10.1 | 65.0 | 140.0 |
| 24(14/34) | 30 × 0.25 | 10.3 | 72.0 | 156.0 |
| 24(14/34) | 32 × 0.25 | 10.5 | 77.0 | 164.0 |
| 24(14/34) | 36 × 0.25 | 11.1 | 86.0 | 182.0 |
| 24(14/34) | 37 × 0.25 | 11.3 | 89.0 | 190.0 |
| 24(14/34) | 40 × 0.25 | 11.5 | 96.0 | 200.0 |
| 24(14/34) | 42 × 0.25 | 11.8 | 101.0 | 211.0 |
| 24(14/34) | 44 × 0.25 | 12.6 | 106.0 | 225.0 |
| 24(14/34) | 48 × 0.25 | 12.7 | 115.0 | 245.0 |
| 24(14/34) | 52 × 0.25 | 13.6 | 125.0 | 263.0 |
| 24(14/34) | 56 × 0.25 | 14.0 | 134.0 | 280.0 |
| 24(14/34) | 61 × 0.25 | 14.4 | 146.0 | 305.0 |
| 24(14/34) | 80 × 0.25 | 19.6 | 192.0 | 450.0 |
| 24(14/34) | 100 × 0.25 | 23.1 | 240.0 | 590.0 |
| 22(7/30) | 2 × 0.34 | 4.2 | 6.5 | 22.0 |
| 22(7/30) | 3 × 0.34 | 4.4 | 9.8 | 30.0 |
| 22(7/30) | 4 × 0.34 | 4.9 | 13.1 | 43.0 |
| 22(7/30) | 5 × 0.34 | 5.3 | 16.3 | 54.0 |
| 22(7/30) | 6 × 0.34 | 5.8 | 19.6 | 58.0 |
| 22(7/30) | 7 × 0.34 | 5.9 | 22.8 | 61.0 |
| 22(7/30) | 8 × 0.34 | 6.3 | 26.1 | 73.0 |
| 22(7/30) | 10 × 0.34 | 7.2 | 32.6 | 82.0 |
| 22(7/30) | 12 × 0.34 | 7.6 | 39.2 | 102.0 |
| 22(7/30) | 14 × 0.34 | 8.0 | 45.7 | 108.0 |
| 22(7/30) | 16 × 0.34 | 8.4 | 52.0 | 126.0 |
| 22(7/30) | 18 × 0.34 | 8.9 | 59.0 | 143.0 |
| 22(7/30) | 20 × 0.34 | 9.8 | 65.0 | 160.0 |
| 22(7/30) | 21 × 0.34 | 9.8 | 69.0 | 166.0 |
| 22(7/30) | 24 × 0.34 | 11.0 | 78.0 | 186.0 |
| 22(7/30) | 25 × 0.34 | 11.2 | 82.0 | 192.0 |
| 22(7/30) | 27 × 0.34 | 11.2 | 88.0 | 206.0 |
| 22(7/30) | 30 × 0.34 | 11.6 | 98.0 | 226.0 |
| 22(7/30) | 32 × 0.34 | 11.9 | 104.0 | 245.0 |
| 22(7/30) | 36 × 0.34 | 12.6 | 118.0 | 285.0 |
| 22(7/30) | 37 × 0.34 | 12.9 | 121.0 | 292.0 |
| 22(7/30) | 40 × 0.34 | 13.5 | 131.0 | 318.0 |
| 22(7/30) | 42 × 0.34 | 14.0 | 137.0 | 330.0 |
| 22(7/30) | 44 × 0.34 | 14.7 | 144.0 | 370.0 |
| 22(7/30) | 48 × 0.34 | 14.9 | 157.0 | 405.0 |
| 22(7/30) | 52 × 0.34 | 15.3 | 170.0 | 430.0 |
| 22(7/30) | 53 × 0.34 | 15.5 | 183.0 | 440.0 |
| 22(7/30) | 61 × 0.34 | 16.2 | 199.0 | 610.0 |
| 22(7/30) | 80 × 0.34 | 22.0 | 264.0 | 880.0 |
| 22(7/30) | 100 × 0.34 | 25.4 | 327.0 | 1050.0 |
| 20(16/32) | 2 × 0.5 | 4.8 | 9.6 | 40.0 |
| 20(16/32) | 3 × 0.5 | 5.1 | 14.4 | 46.0 |
| 20(16/32) | 4 × 0.5 | 5.7 | 19.2 | 55.0 |
| 20(16/32) | 5 × 0.5 | 6.2 | 24.0 | 64.0 |
| 20(16/32) | 6 × 0.5 | 6.7 | 28.8 | 73.0 |
| 20(16/32) | 7 × 0.5 | 7.4 | 33.6 | 81.0 |
| 20(16/32) | 8 × 0.5 | 8.0 | 38.4 | 97.0 |
| 20(16/32) | 10 × 0.5 | 8.8 | 48.0 | 116.0 |
| 20(16/32) | 12 × 0.5 | 9.1 | 58.0 | 135.0 |
| 20(16/32) | 16 × 0.5 | 10.0 | 77.0 | 168.0 |
| 20(16/32) | 20 × 0.5 | 11.2 | 96.0 | 213.0 |
| 20(16/32) | 24 × 0.5 | 12.3 | 116.0 | 241.0 |
| 20(16/32) | 30 × 0.5 | 13.5 | 144.0 | 303.0 |
| 20(16/32) | 40 × 0.5 | 15.8 | 192.0 | 391.0 |
| 18(24/32) | 2 × 0.75 | 5.2 | 14.4 | 47.0 |
| 18(24/32) | 3 × 0.75 | 5.5 | 21.6 | 54.0 |
| 18(24/32) | 4 × 0.75 | 6.2 | 29.0 | 66.0 |
| 18(24/32) | 5 × 0.75 | 6.8 | 36.0 | 80.0 |
| 18(24/32) | 7 × 0.75 | 8.1 | 50.0 | 110.0 |
| 18(24/32) | 8 × 0.75 | 8.9 | 58.0 | 125.0 |
| 18(24/32) | 10 × 0.75 | 9.6 | 72.0 | 148.0 |
| 18(24/32) | 12 × 0.75 | 9.9 | 86.0 | 176.0 |
| 18(24/32) | 16 × 0.75 | 11.6 | 115.0 | 220.0 |
| 18(24/32) | 20 × 0.75 | 12.6 | 144.0 | 276.0 |
| 17(32/32) | 2 × 1.0 | 5.5 | 19.2 | 56.0 |
| 17(32/32) | 3 × 1.0 | 6.0 | 29.0 | 71.0 |
| 16(30/30) | 2 × 1.5 | 6.5 | 29.0 | 75.0 |
| 16(30/30) | 3 × 1.5 | 6.9 | 43.0 | 90.0 |
