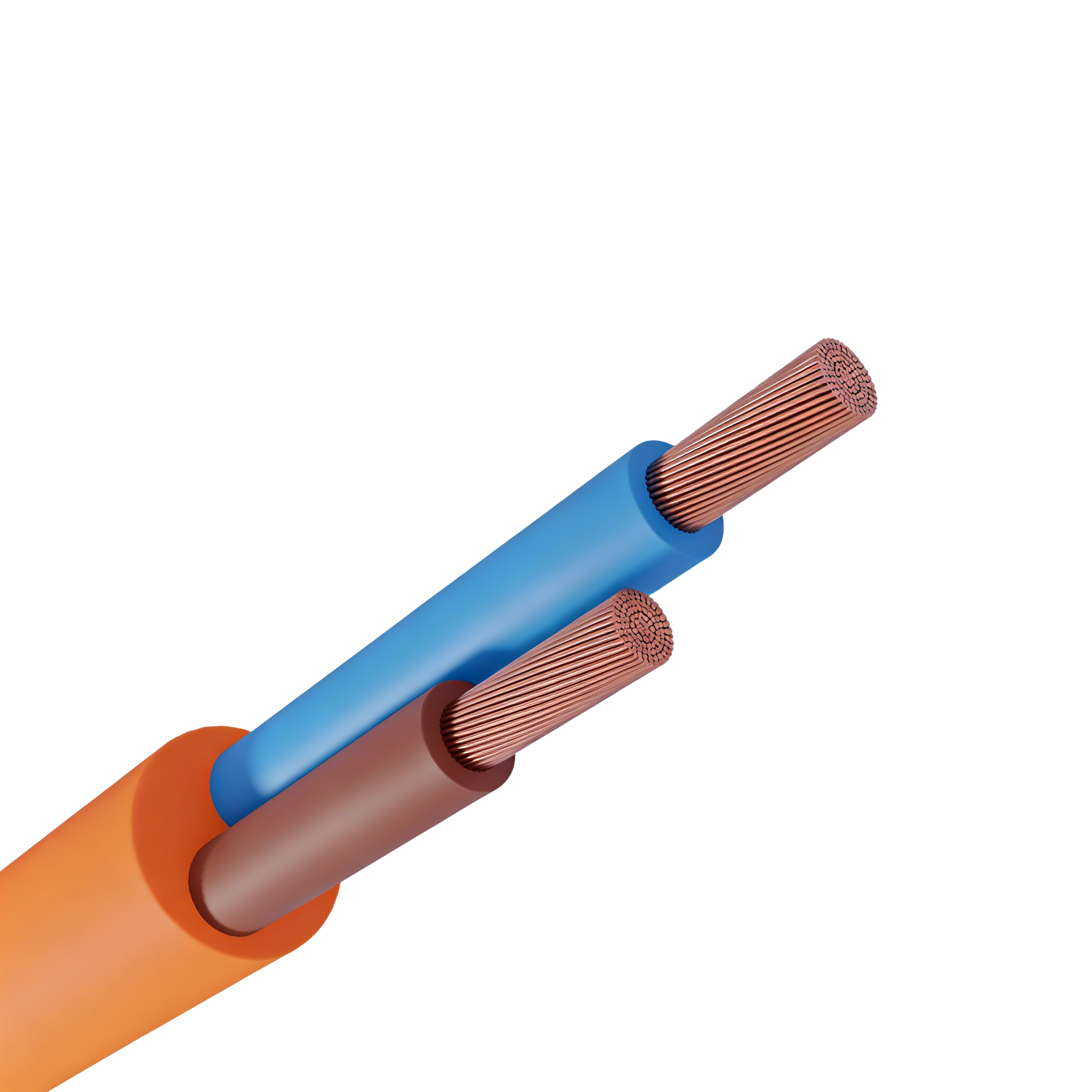

H05BQ‑F / H07BQ‑F (NGMH11YÖ)

H05BQ-F & H07BQ-F Rubber Flexible Cable | EPR Insulated, Chloroprene Sheath, Oil & Heat Resistant for Industrial Applications

These flexible PURjacketed cables are engineered for mediumlevel mechanical stress and can be deployed within dry, damp and wet working environments. Typical applications include power connection for agricultural and commercialgrade equipment, as well as heating appliances where surface hotspot contact poses a risk of cable damage.

They are widely adopted for power supply to handheld power tools such as electric drills and circular saws, and are frequently installed on construction sites and inside refrigeration facilities. H07BQ-F cable variant is extensively used across agricultural machinery, building works, dock facilities and refrigeration systems.

Its heavyduty PUR outer sheath delivers outstanding resistance against abrasion, notch damage and tearing. It also provides reliable protection against oils, greases, petrol, water, ozone, UV radiation, hydrolysis and microbial erosion. This cable is also known under the common European designation NGMH11YÖ.

Standard and Approval

Compliant with HD22.10 S1, VDE0282 Part10 and CEI 2019 p.10. It meets requirements of CE lowvoltage directive 73/23/EEC & 93/68/EEC, IEC 602454, and is fully RoHS compliant.

Cable Construction：

• Finestranded bare or tinned copper conductors, manufactured to VDE0295 Class5, IEC 60228 and HD383 Class5 standards
• E16grade rubber compound insulation conforming to VDE0282 Part1
• Core colour coding following VDE0293308 specification
• Multilayer stranded conductors with optimised lay length
• Greenyellow protective earth core arranged in the outer conductor layer
• Polyurethane (PUR) outer sheath, TMPU grade in orange RAL 2003

Technical Characteristics：

• Working voltage: 300/500 V for H05BQF; 450/750 V for H07BQ-F
• Test voltage: 2000 V (H05BQ-F); 2500 V (H07BQ-F)
• Bending radius for dynamic flexing: 5 × cable outer diameter
• Bending radius for static fixed installation: 3 × cable outer diameter
• Dynamic operating temperature: 40 °C ~ +80 °C
• Static installation temperature: 50 °C ~ +90 °C
• Shortcircuit withstand temperature: +250 °C
• Flameretardant performance: IEC 60332.1
• Insulation resistance: 20 MΩ × km

Standard Packaging:
Cables are wound onto plastic reels or export wooden drums.
Standard lengths: 100 m, 500 m, 1000 m.
Custom cut‑to‑length, custom labels and logo printing are acceptable.
Export‑oriented moisture‑proof & anti‑compression packaging for overseas shipment.
