Applications：

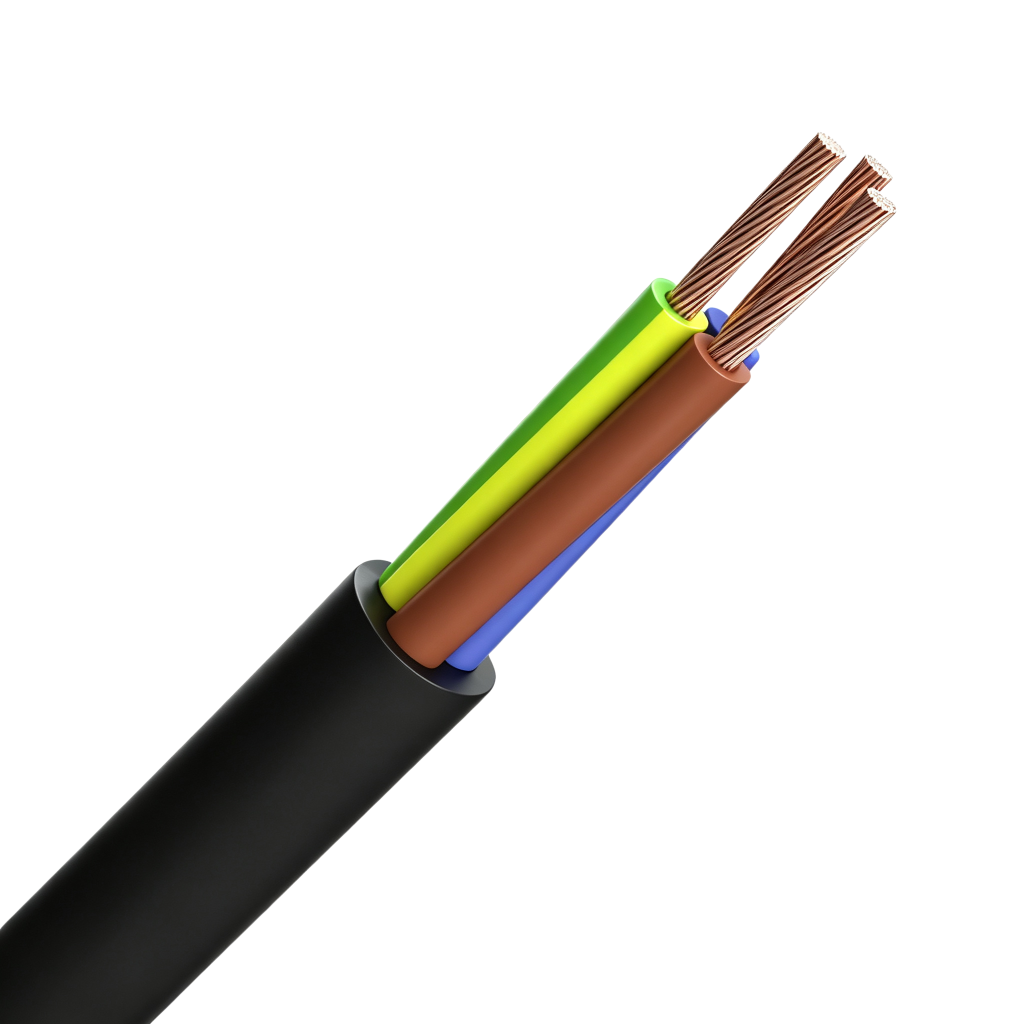

H07RN‑F is a highly‑flexible rubber‑sheathed power cable engineered to withstand outdoor weather exposure, oil and grease contamination, as well as mechanical and thermal loadsCaledonian….
Typical deployment covers material‑handling machinery, mobile power units, construction job‑sites, stage and audiovisual equipment, port facilities and dam installations. It is also fit for fixed plaster‑mounted wiring, temporary buildings and prefabricated residential barracks. Further suitable environments include drainage‑water treatment facilities, cold‑climate locations and heavy‑duty industrial settingsCaledonian….
Maximum operating voltage ratings:
- Single‑phase / three‑phase AC systems: Uo/U 476/825 V
- DC systems: Uo/U 619/1238 V
- Under fixed or protected installation conditions: Uo/U 600/1000 V
The cable features flame‑retardant performance together with acid‑resistance and oil‑penetration.
Standards & Compliance:
- HD22.4 S3, VDE‑0282 Part‑4
- CEI 20‑19/4 / 20‑35 (EN60332‑1), IEC 60245‑4
- CE Low‑Voltage Directives: 73/23/EEC & 93/68/EEC
- RoHS compliantCaledonian…
Cable Construction:
- Conductor: Fine‑stranded bare copper, conforming to VDE‑0295 Class‑5 / IEC 60228 Class‑5
- Core insulation: EI4‑grade rubber per VDE‑0282 Part‑1
- Core colour coding: VDE‑0293‑308 and HD 186 specifications; green‑yellow protective‑earth core for assemblies of 3 cores and above
- Outer sheath: EM2‑grade polychloroprene rubber (neoprene)
Standard Packaging:
- Cables are wound onto plastic reels or export wooden drums.
- Standard lengths: 100 m, 500 m, 1000 m.
- Custom cut‑to‑length, custom labels and logo printing are acceptable.
- Export‑oriented moisture‑proof & anti‑compression packaging for overseas shipment.
Parameters:
| AWG | NO. OF CORES X NOMINAL CROSS SECTIONAL AREA # X MM² | NOMINAL THICKNESS OF INSULATION MM | NOMINAL THICKNESS OF SHEATH MM | NOMINAL OVERALL DIAMETER MM MIN-MAX | NOMINAL COPPER WEIGHT KG/KM | NOMINAL WEIGHT KG/KM |
| 17(32/32) | 2 x 1 | 0.8 | 1.3 | 7.7-10 | 19 | 89 |
| 17(32/32) | 3 x 1 | 0.8 | 1.4 | 8.3-10.7 | 29 | 111 |
| 17(32/32) | 4 x 1 | 0.8 | 1.5 | 9.2-11.9 | 38 | 146 |
| 16(30/30) | 1 x 1.5 | 0.8 | 1.4 | 5.7-7.1 | 14.4 | 59 |
| 16(30/30) | 2 x 1.5 | 0.8 | 1.5 | 8.5-11.0 | 29 | 135 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.6 | 9.2-11.9 | 43 | 165 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.7 | 10.2-13.1 | 58 | 200 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.8 | 11.2-14.4 | 72 | 240 |
| 16(30/30) | 7 x 1.5 | 0.8 | 2.6 | 14.5-17.5 | 101 | 385 |
| 16(30/30) | 12 x 1.5 | 0.8 | 2.9 | 17.6-22.4 | 173 | 516 |
| 16(30/30) | 19 x 1.5 | 0.8 | 3.2 | 20.7-26.3 | 274 | 800 |
| 16(30/30) | 24 x 1.5 | 0.8 | 3.5 | 24.3-30.7 | 346 | 882 |
| 14(50/30) | 1 x 2.5 | 0.9 | 1.4 | 6.3-7.9 | 24 | 72 |
| 14(50/30) | 2 x 2.5 | 0.9 | 1.7 | 10.2-13.1 | 48 | 195 |
| 14(50/30) | 3 x 2.5 | 0.9 | 1.8 | 10.9-14.0 | 72 | 235 |
| 14(50/30) | 4 x 2.5 | 0.9 | 1.9 | 12.1-15.5 | 96 | 290 |
| 14(50/30) | 5 x 2.5 | 0.9 | 2.0 | 13.3-17.0 | 120 | 345 |
| 14(50/30) | 7 x 2.5 | 0.9 | 2.8 | 16.5-20.0 | 168 | 520 |
| 14(50/30) | 12 x 2.5 | 0.9 | 3.1 | 20.6-26.2 | 288 | 810 |
| 14(50/30) | 19 x 2.5 | 0.9 | 3.5 | 25.5-31.0 | 456 | 1200 |
| 14(50/30) | 24 x 2.5 | 0.9 | 3.9 | 28.8-36.4 | 576 | 1650 |
| 12(56/28) | 1 x 4 | 1.0 | 1.5 | 7.2-9.0 | 38 | 99 |
| 12(56/28) | 2 x 4 | 1.0 | 1.8 | 11.8-15.1 | 77 | 270 |
| 12(56/28) | 3 x 4 | 1.0 | 1.9 | 12.7-16.2 | 115 | 320 |
| 12(56/28) | 4 x 4 | 1.0 | 2 | 14.0-17.9 | 154 | 395 |
| 12(56/28) | 5 x 4 | 1.0 | 2.2 | 15.6-19.9 | 192 | 485 |
| 12(56/28) | 7 x 4 | 1.0 | 3.1 | 18.2-21.8 | 269 | 681 |
| 10(84/28) | 1 x 6 | 1.0 | 1.6 | 7.9-9.8 | 58 | 130 |
| 10(84/28) | 3 x 6 | 1.0 | 2.1 | 14.1-18.0 | 173 | 495 |
| 10(84/28) | 4 x 6 | 1.0 | 2.3 | 15.7-20.0 | 230 | 610 |
| 10(84/28) | 5 x 6 | 1.2 | 2.5 | 17.5-22.2 | 288 | 760 |
| 8(80/26) | 1 x 10 | 1.2 | 1.8 | 9.5-11.9 | 96 | 230 |
| 8(80/26) | 3 x 10 | 1.2 | 3.3 | 19.1-24.2 | 288 | 880 |
| 8(80/26) | 4 x 10 | 1.2 | 3.4 | 20.9-26.5 | 384 | 1060 |
| 8(80/26) | 5 x 10 | 1.2 | 3.6 | 22.9-29.1 | 480 | 1300 |
| 6(128/26) | 1 x 16 | 1.2 | 1.9 | 10.8-13.4 | 154 | 320 |
| 6(128/26) | 3 x 16 | 1.2 | 3.5 | 21.8-27.6 | 461 | 1090 |
| 6(128/26) | 4 x 16 | 1.2 | 3.6 | 23.8-30.1 | 614 | 1345 |
| 6(128/26) | 5 x 16 | 1.2 | 3.9 | 26.4-33.3 | 768 | 1680 |
| 4(200/26) | 1 x25 | 1.4 | 2.0 | 12.7-15.8 | 240 | 450 |
| 4(200/26) | 4 x 25 | 1.4 | 4.1 | 28.9-36.6 | 960 | 1995 |
| 4(200/26) | 5 x 25 | 1.4 | 4.4 | 32.0-40.4 | 1200 | 2470 |
| 2(280/26) | 1 x 35 | 1.4 | 2.2 | 14.3-17.9 | 336 | 605 |
| 2(280/26) | 3 x 35 | 1.4 | 4.1 | 29.3-37.1 | 1008 | 1900 |
| 2(280/26) | 4 x 35 | 1.4 | 4.4 | 32.5-41.1 | 1344 | 2645 |
| 2(280/26) | 5 x 35 | 1.4 | 4.7 | 37.0-45.0 | 1680 | 2810 |
| 1(400/26) | 1 x 50 | 1.6 | 2.4 | 16.5-20.6 | 480 | 825 |
| 1(400/26) | 4 x 50 | 1.6 | 4.8 | 37.7-47.5 | 1920 | 3635 |
| 1(400/26) | 5 x 50 | 1.6 | 5.1 | 40.0-50.8 | 2400 | 4050 |
| 2/0(356/24) | 1 x 70 | 1.6 | 2.6 | 18.6-23.3 | 672 | 1090 |
| 2/0(356/24) | 4 x 70 | 1.6 | 5.2 | 42.7-54.0 | 2688 | 4830 |
| 3/0(485/24) | 1 x 95 | 1.8 | 2.8 | 20.8-26.0 | 912 | 1405 |
| 3/0(485/24) | 4 x 95 | 1.8 | 5.9 | 48.4-61.0 | 3648 | 6320 |
| 4/0(614/24) | 1x 120 | 1.8 | 3 | 22.8-28.6 | 1152 | 1746 |
| 4/0(614/24) | 4 x 120 | 1.8 | 6 | 53.0-66.0 | 4608 | 6830 |
| 300MCM(765/24) | 1 x 150 | 2 | 3.2 | 25.2-31.4 | 1440 | 1887 |
| 300MCM(765/24) | 4 x 150 | 2 | 6.4 | 58.0-73.0 | 5760 | 8320 |
| 350MCM(944/24) | 1 x 185 | 2.2 | 3.4 | 27.6-34.4 | 1776 | 2274 |
| 350MCM(944/24) | 4 x 185 | 2.2 | 6.8 | 64.0-80.0 | 7104 | 9800 |
| 500MCM(1221/24) | 1x 240 | 2.4 | 3.5 | 30.6-38.3 | 23.4 | 2956 |
| 500MCM(1221/24) | 4x 240 | 2.4 | 7.0 | 72.0-90.0 | 9216 | 12100 |
| – | 1 x 300 | 2.6 | 3.6 | 33.5-41.9 | 2880 | 3479 |
| – | 1 x 400 | 2.8 | 3.8 | – | – | 4500 |
| – | 1x 500 | 3 | 4 | – | – | 5800 |
