Application and Description：
These harmonized PVC‑sheathed flexible cables are engineered for applications subject to moderate mechanical loads within damp and wet indoor surroundings. They are widely deployed as internal connection cords for household appliances including refrigerators, washing machines and spin dryers, subject to full compliance with the respective equipment specifications.
Suitable for cooking and heating equipment installation, on condition that the cable surface shall not make direct contact with hot components or external heat sources. Additional installation scenarios include fixed wiring inside furniture, partition panels, decorative claddings and hollow cavities of prefabricated building assemblies.
This cable variant is not intended for outdoor exposure, general‑purpose industrial deployment (garment manufacturing excluded), or agricultural‑site usage. For single‑phase and three‑phase power systems, the maximum operating voltage reaches Uo/U 318/550 V; within DC circuits, the permissible maximum operating voltage is Uo/U 413/825 V.

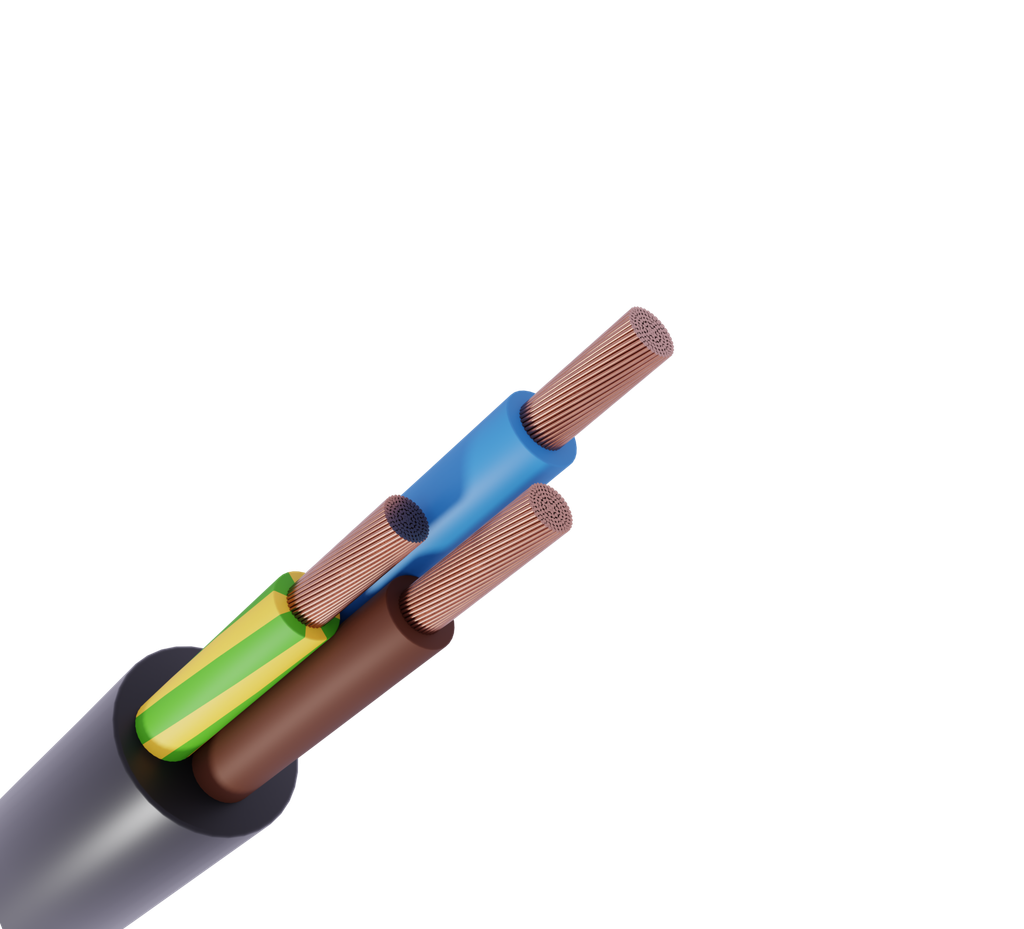

Cable Construction：
- Fine‑stranded bare copper conductors
- Conductor stranding meets DIN VDE 0295 Class 5, BS 6360 Class 5, IEC 60228 Class 5 and HD 383 standards
- T12‑grade PVC core insulation complying with VDE‑0281 Part 1
- Core colour coding implemented according to VDE‑0293‑308
- Green‑yellow protective earth core fitted for assemblies of 3 cores or more
- TM2‑grade PVC outer sheath
Technical Characteristics：
- Working voltage: 300/500 volts
- Test voltage: 2000 volts
- Dynamic flexing bending radius: 7.5 × cable outer diameter
- Static installation bending radius: 4 × cable outer diameter
- Flexing operating temperature: ‑5 °C ~ +70 °C
- Static operating temperature: ‑40 °C ~ +70 °C
- Short‑circuit withstand temperature: +160 °C
- Flame‑retardant property: IEC 60332.1
- Insulation resistance: 20 MΩ × km
- Standard Packaging:
- Standard Packaging:
- Cables are wound onto plastic reels or export wooden drums.
- Standard lengths: 100 m, 500 m, 1000 m.
- Custom cut‑to‑length, custom labels and logo printing are acceptable.
- Export‑oriented moisture‑proof & anti‑compression packaging for overseas shipment.
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
|---|---|---|---|---|---|---|
| # × mm² | mm | mm | mm | kg/km | kg/km | |
| H05VV‑F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 6.4 | 14.4 | 57 |
| 18(24/32) | 3 x 0.75 | 0.6 | 0.8 | 6.8 | 21.6 | 68 |
| 18(24/32) | 4 x 0.75 | 0.6 | 0.8 | 7.4 | 29 | 84 |
| 18(24/32) | 5 x 0.75 | 0.6 | 0.9 | 8.5 | 36 | 106 |
| 17(32/32) | 2 x 1.00 | 0.6 | 0.8 | 6.8 | 19 | 65 |
| 17(32/32) | 3 x 1.00 | 0.6 | 0.8 | 7.2 | 29 | 79 |
| 17(32/32) | 4 x 1.00 | 0.6 | 0.9 | 8.0 | 38 | 101 |
| 17(32/32) | 5 x 1.00 | 0.6 | 0.9 | 8.8 | 48 | 123 |
| 16(30/30) | 2 x 1.50 | 0.7 | 0.8 | 7.6 | 29 | 87 |
| 16(30/30) | 3 x 1.50 | 0.7 | 0.9 | 8.2 | 43 | 111 |
| 16(30/30) | 4 x 1.50 | 0.7 | 1.0 | 9.2 | 58 | 142 |
| 16(30/30) | 5 x 1.50 | 0.7 | 1.1 | 10.5 | 72 | 176 |
| 14(50/30) | 2 x 2.50 | 0.8 | 1.0 | 9.2 | 48 | 134 |
| 14(50/30) | 3 x 2.50 | 0.8 | 1.1 | 10.1 | 72 | 169 |
| 14(50/30) | 4 x 2.50 | 0.8 | 1.1 | 11.2 | 96 | 211 |
| 14(50/30) | 5 x 2.50 | 0.8 | 1.2 | 12.4 | 120 | 262 |
| 12(56/28) | 3 x 4.00 | 0.8 | 1.2 | 11.3 | 115 | 233 |
| 12(56/28) | 4 x 4.00 | 0.8 | 1.2 | 12.5 | 154 | 292 |
| 12(56/28) | 5 x 4.00 | 0.8 | 1.4 | 13.7 | 192 | 369 |
| 10(84/28) | 3 x 6.00 | 0.8 | 1.1 | 13.1 | 181 | 328 |
| 10(84/28) | 4 x 6.00 | 0.8 | 1.3 | 13.9 | 230 | 490 |
| 10(84/28) | 5 x 6.00 | 0.8 | 1.4 | 15.9 | 289 | 548 |
| H05VVH2‑F | ||||||
| 18(24/32) | 2 x 0.75 | 0.6 | 0.8 | 4.2 x 6.8 | 14.4 | 48 |
| 17(32/32) | 2 x 1.00 | 0.6 | 0.8 | 4.4 x 7.2 | 19.2 | 57 |
